DIN 17175 Stardard Alloy Seamless Steel Pipes

Short Description:

DIN 17175 alloy steel pipes are of heat resistant pipe and used for high pressure and up to 600℃, application fileds include: construction of boilers, pipe-lines, pressure vessels and equipment.

Send email to us

Product Detail

Product Tags

Product Introduction

DIN 17175 is designed for elevated temperature purposes, ANSON supplies following steel grades: St35.8, St45.8, 15Mo3, 13CrMo44, 10CrMo910. DIN 17175 seamless steel pipes are widely used in heat exchange appliances. This low alloy grade has significant additions of molybdenum and manganese to it. Besides its use in boiler systems, it is useful for applications in the oil, gas and chemical industry. Generally, these industries make use of heat exchangers, as a means of transference of heat among two or more solutions. The pipes under DIN 17175 are manufactured from carbon and low-alloy steel grades which are resistant to loads under high pressure and temperatures. They are used for the construction of power engineering appliances such as: boilers, heating coils, stoves, heaters, heat exchanger tubes.

DIN 17175 seamless steel pipes are used for boiler installations, high-pressure pipelines and tank construction and special machinery for both high temperature and high-pressure devices(Above 450° high temperature). ANSON is an experienced boiler and pressure steel tube supplier which can offer you DIN 17175 steel pipe of all grade and dimension range.

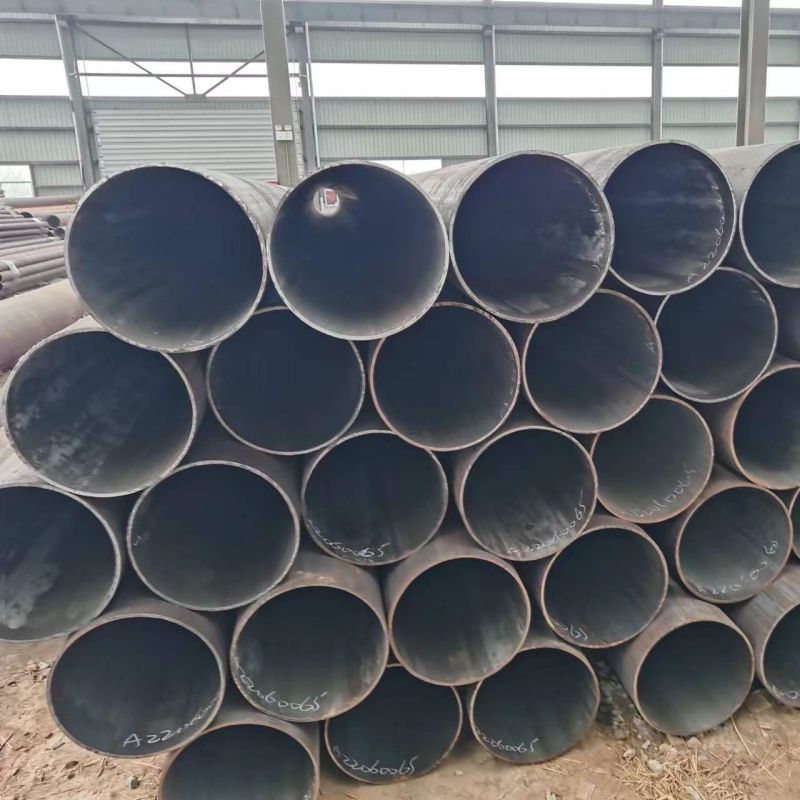

Product Display

Product Configuration

Delivery Condition:
Annealed, Normalized, Normalized and Tempered.

Inspection and Test:
Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test, Hydrostatic Test.

Surface treatment:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.

Inner packing:
Caps on two ends of each pipe.

Package:
bare packing/bundle packing/wooden carton packing.

Chemical Composition(%)

Grade	Chemical Composition (%)
Grade	C	Si	Mn	P	S	Ni	Cr	Mo	Others
St35.8	0.17Max	0.10~0.35	0.40~0.80	0.040Max	0.040Max	-	-	-	-
St45.8	0.21Max	0.10~0.35	0.40~1.20	0.040Max	0.040Max	-	-	-	-
17Mn4	0.14~0.20	0.20~0.40	0.90~1.20	0.040Max	0.040Max	-	0.30Max	-	-
19Mn5	0.17~0.22	0.30~0.60	1.00~1.30	0.040Max	0.040Max	-	0.30Max	-	-
15Mo3	0.12~0.20	0.10~0.35	0.40~0.80	0.035Max	0.035Max	-	-	0.25~0.35	-
13CrMo910	0.10~0.18	0.10~0.35	0.40~0.70	0.035Max	0.035Max	-	0.70~1.10	0.45~0.65	-
10CrMo910	0.08~0.15	0.50Max	0.40~0.70	0.035Max	0.035Max	-	2.00~2.50	0.90~1.20	-
14MoV63	0.10~0.18	0.10~0.35	0.40~0.70	0.035Max	0.035Max	-	0.30~0.60	0.50~0.70	V: 0.22~0.32
X20CrMoV121	0.17~0.23	0.50Max	0.40~0.70	0.030Max	0.030Max	0.30~0.80	10.00~12.50	0.80~1.20	V: 0.25~0.35

Mechanical Properties

Grade	Material	MPa or N/mm2
	Number	Min Yield Point		Tensile Strength
		WT: 16mm Max	WT: 16- 40mm	Tensile Strength
St35.8	1.0305	235	225	360~480
St45.8	1.0405	-	245	410~530
17Mn4	1.0481	-	275	460~580
19Mn5	1.0482	-	315	510~610
15Mo3	1.5415	275	275	450~600
13CrMo910	1.7335	295	295	440~590
10CrMo910	1.738	285	285	450~600
14MoV63	1.7715	325	325	460~610
X20CrMoV121	1.4922	490	490	690~850
