Hot Rolled Gas Cylinder Steel Plate

Short Description:

Gas cylinder steel plate is used to manufacture the material which can be used repeatedly to manufacture liquefied petroleum gas cylinders with working temperature of 40-60 ℃, test pressure of 2.36 MPa, water volume of 23.5L, 35.5L, 118L. Delivery status: Hot-rolled steel In the hot-rolled state or controlled rolling state or heat treatment, the state of delivery, cold-rolled steel to the annealing state of delivery.


Product Detail

Product Tags

Product Introduction

Gas cylinder steel plate is used in welded gas cylinder and related products. We supplies gas cylinder steel with better anti-stress capability. Popular Steel standard and grades for cylinders steel mainly: EN10120 P245NB, P310NB, JIS G3116 SG255, SG325, DIN17155 HI HII, 17Mn4,GB HP235, HP295, HP345.Gas cylinder steel plate is used to manufacture the material which can be used repeatedly to manufacture liquefied petroleum gas cylinders with working temperature of 40-60 ℃, test pressure of 2.36 MPa, water volume of 23.5L, 35.5L, 118L. Delivery status: Hot-rolled steel In the hot-rolled state or controlled rolling state or heat treatment, the state of delivery, cold-rolled steel to the annealing state of delivery.

HP295 is mainly used in the manufacture of liquefied gas cylinders, its chemical composition is stable, P, S content is low, pure steel, the internal organization, fine grain. Moderate strength, good plasticity, low yield ratio, yield platform is not obvious, vertical and horizontal performance of small differences, excellent cold stamping performance. Flat steel plate, with a small thickness of the plate. Low carbon equivalent, to adapt to automatic submerged arc welding, plasma welding and other welding process requirements.

Product Display

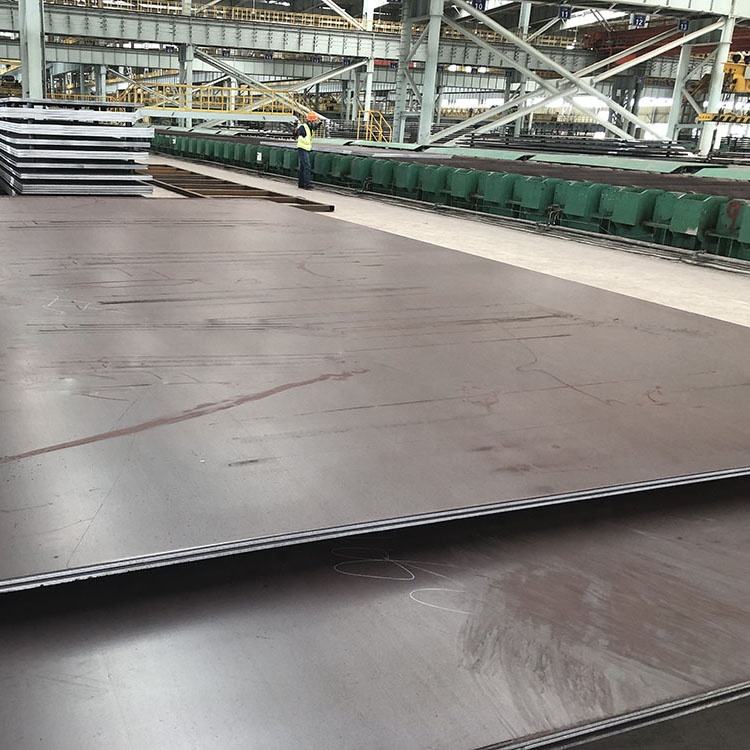

Gas Cylinder Steel Plate4
Gas Cylinder Steel Plate2
Gas Cylinder Steel Plate3

Chemical Composition for Gas Cylinder Steel Plate

Steel Grade

Chemical Compostion for Gas Cylinder Steel

C

Si

Mn

P

P+S

Als

HP 295

≤0.20

≤0.35

≤1.0

≤0.035

≤0.06

≥0.015

HP 345

≤0.20

≤0.35

≤1.5

≤0.035

≤0.06

≥0.015

Mechanical Property for Gas Cylinder Steel Plate

Steel Grade

Mechanical Property for Gas Cylinder Steel

Yield Strength

TensileStrength

Elongation

Cold bending

MPa

MPa

%

HP 295

≥295

≥440

≥26

D=2a

HP 345

≥345

≥510

≥20

D=2a

Dimension for Gas Cylinder Steel Plate

Product

Grade

Th(mm)

W(mm)

Delivery

Steel Standard

Gas cylinder steel plate

HP 295

2~12

800~1630

HR、TMCP

GB6653-2008

HP 345

2~12

800~1630

HR、TMCP

GB6653-200
